100/1000BASE-T / 2500BASE-T / 5000BASE-T / 10GBASE-T SFP+ Copper RJ-45 100m Transceiver

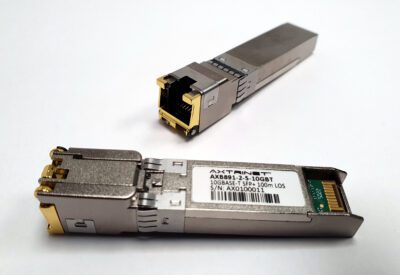

The Axtrinet™ AXB891-2-5-10GBT copper transceiver module is a high-performance integrated duplex data link for bi-directional communication over copper cable.
It is specifically designed for use with Axtrinet Ethernet Packet Generators for testing Ethernet equipment that requires up to 10Gbps Ethernet over Cat 7 cable links with Copper Auto-negotiation mode.
It is compliant with the Ethernet standards as specified in IEEE 802.3-2022 which supports 100/1000Base-T, 2500Base-T, 5000Base-T and 10GBase-T Copper data-rate up to 100 metres reach over twisted-pair cable.
Application
- 10 Gigabit Ethernet over Category 6a/7 Cable

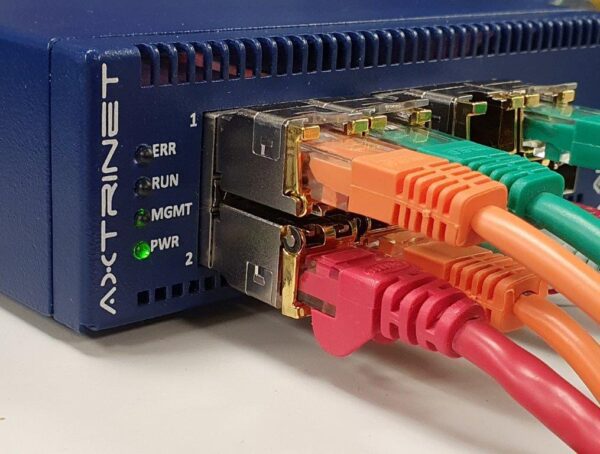

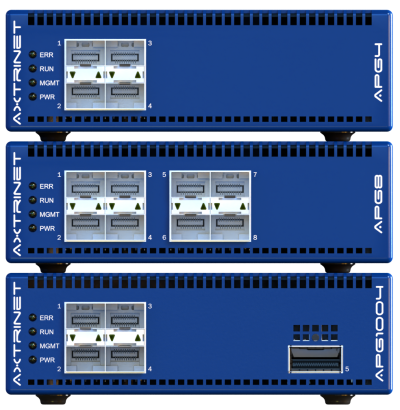

- Axtrinet APGv2 Ethernet Packet Generators
Standards
- SFP MSA, SFF-8418, SFF-8419, SFF-8431, SFF‑8432 and SFF-8472
- IEEE 802.3-2022
Features
- Supports XFI(SFI) or SGMII to Copper Auto-negotiation
- 10GBase-T Operation in Host Systems with XFI(SFI) Interface
- 10GBase-T Supports Links Up to 100m Using Cat 6a/7 Cable
- Power Consumption 1.8W MAX. @100m
- Compatible with Axtrinet SGMII Interface for 100/1000Base-T Operation
- 100/1000Base-T or 2500/5000Base-T Supports links up to 100m using Cat 5E Cable or Better
- Support Unshielded and Shielded Cable
- Support MDI/MDIX Crossover
- 3V Single Power Supply
- Hot-pluggable SFP Footprint.
- Fully Metallic Enclosure for Low EMI
- Compact RJ-45 Connector Assembly
- Detailed Product Information in EEPROM
- Access to I2C -Wire Serial Bus Interface for Serial ID and PHY Register Access
- 0℃ to 70℃ Operating Temperature Range
